- Portable All-In-One design with 15.6 inch FHD LCD display
- 6 channel inputs: 4xSDI and 2xDVI-I/HDMI/VGA/USB
- 3xSDI PGM out (1xAUX), 2xHDMI PGM & 1xHDMI multiview out
- Input format auto-detected and PGM/AUX output format selectable
- T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects

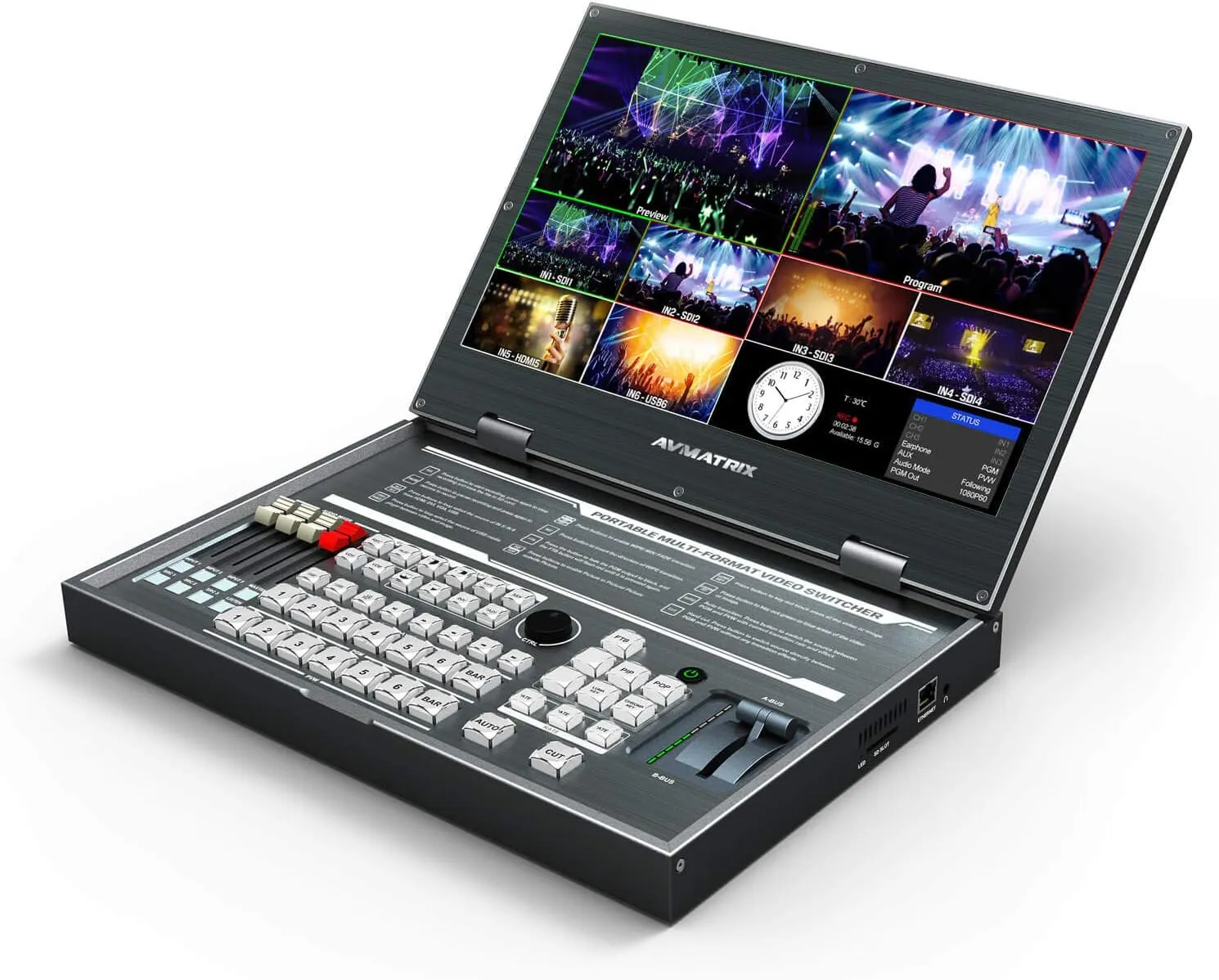

AVmatrix PVS0615 Portable 6-Channel Multi-format Video Switcher, 15.6" FHD LCD Display, 6 Channel Inputs, Input Format Auto-Detected and PGM/AUX Output Format Selectable, Audio Mixer
PVS0615 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and video recording. The unit integrated a 15.6" LCD monitor which can be used in wide variety of venues for events, seminars, etc.
Key Features- Portable All-In-One design with 15.6 inch FHD LCD display
- 6 channel inputs: 4xSDI and 2xDVI-I/HDMI/VGA/USB
- 3xSDI PGM out (1xAUX), 2xHDMI PGM & 1xHDMI multiview out
- Input format auto-detected and PGM/AUX output format selectable
- T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
- Luma Key/ Chroma Key for virtual studio
- PIP/POP window size and position adjustable
- Record PGM video to SD card, up to 1080p60
- Audio mixer: TRS audio & SDI, HDMI, USB embedded audio
- Resolution: 1920x1080
- Video Inputs: 4×3G/HD/SD-SDI, 2×HDMI/DVI/VGA/USB
- Bit Rate: 270Mbps~3Gbps
- Impedance: 75Ω (SDI/VGA), 100Ω (HDMI/DVI)
- SDI Video Rate: Auto detection, SD/HD/3G-SDI
- SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
- PGM Outputs: 3×3G/HD/SD-SDI; 2×HDMI
- PGM Output Format: 1080p 50/60/30/25/24, 1080i 50/60
- Multiview Output: 1×HDMI
- Multiview Output Format: 1080p 60
- Return Loss:>15dB 5MHz~3GHz
- LAN: RJ45
- SD Card Slot: 1
- Operation Temperature: -20°C~60°C
- Storage Temperature: -30°C~70°C
- Operation Humidity: 20%~70%RH
- Storage Humidity: 0%~90%RH
- Power Supply: DC 12V 5A, 33W
- Dimensions: 10.7"W x 1.72"D x 14.76"L
- Weight: 8.38 Pounds
