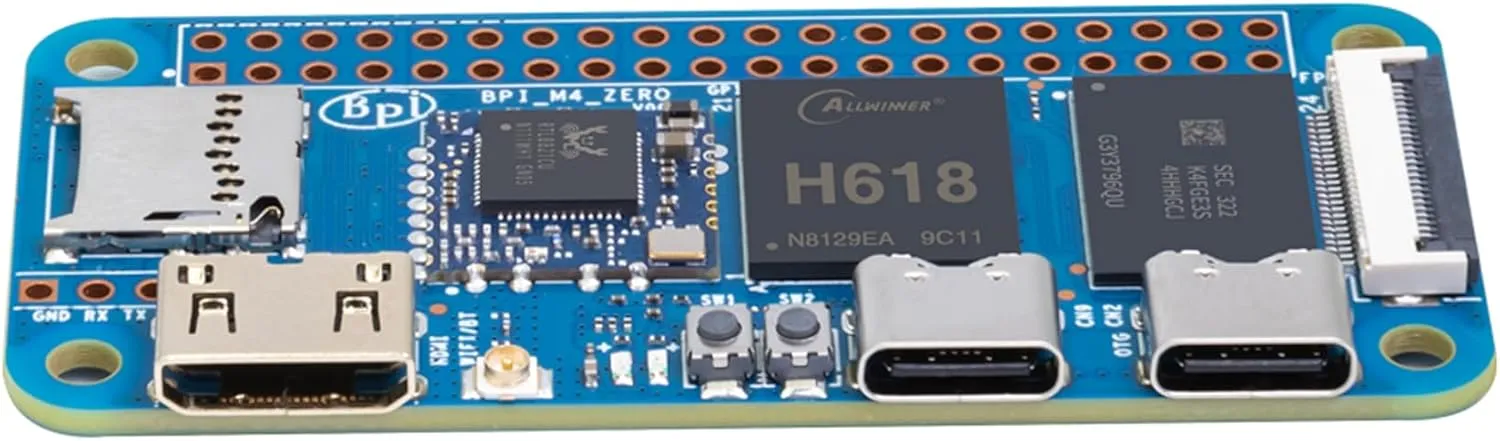

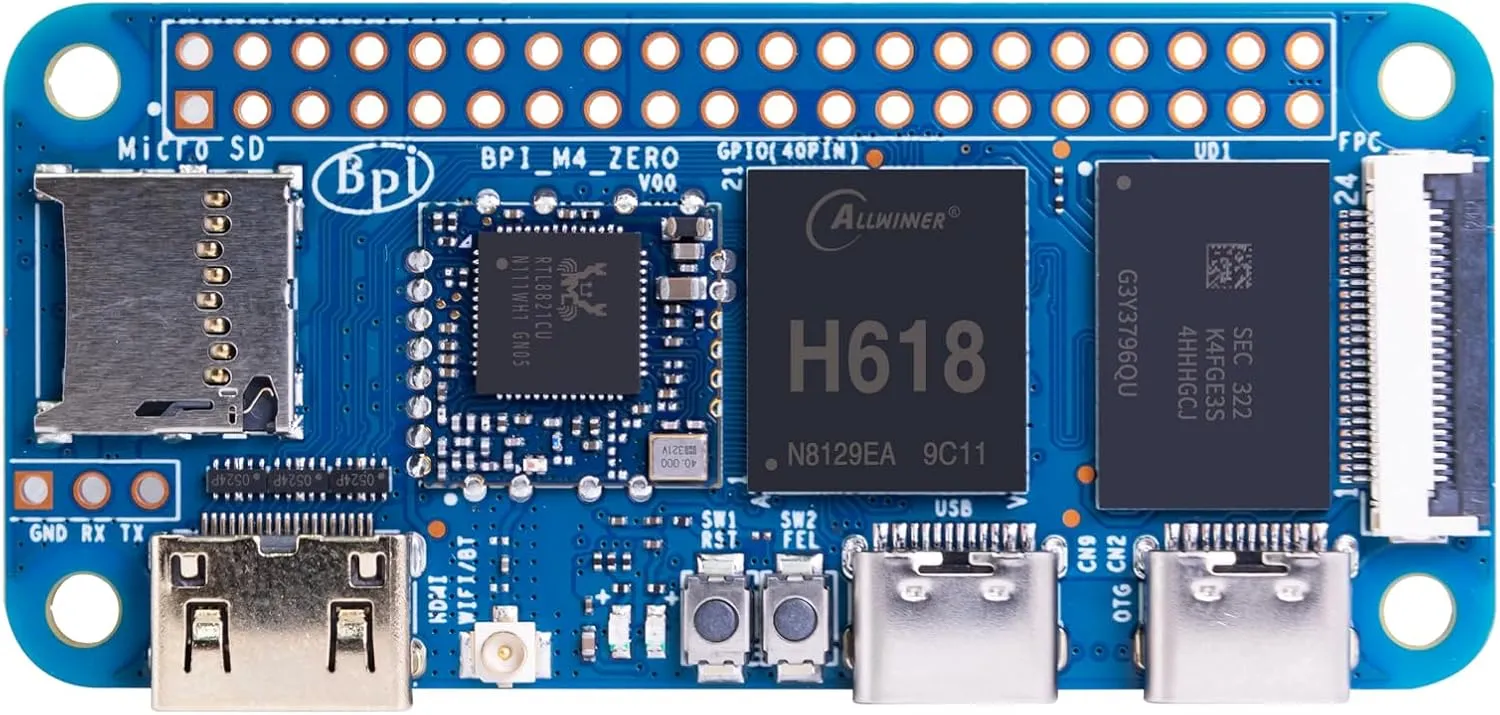

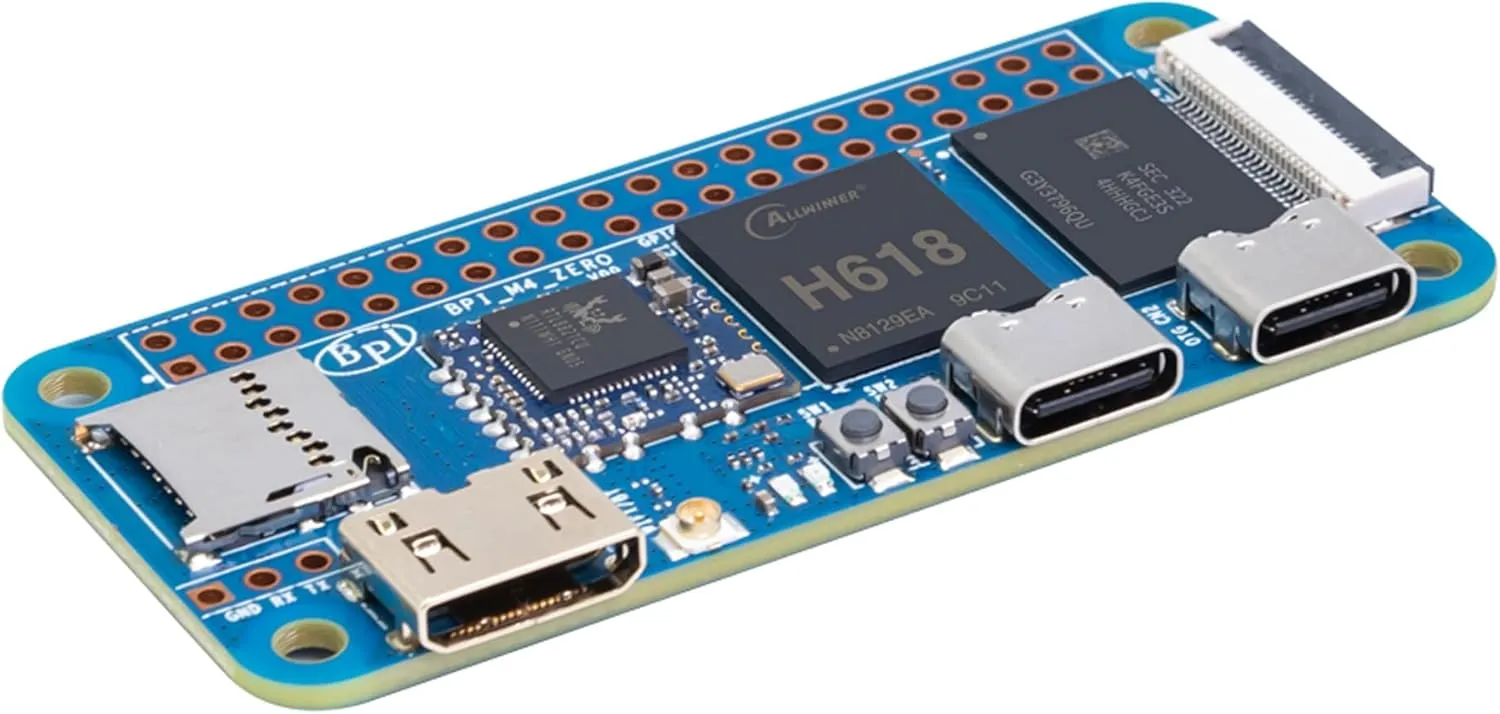

- [Upgraded Allwinner Chip] Banana Pi BPI-M4 Zero single board computer has a huge improvement in performance. The SoC is upgraded to Allwinner H618, 64-bit Quad-core ARM Cortex-A53 up to 1.5GHz, with ARM Mali G31 GPU, the CPU frequency is increased by 25%.
- [Greater Memory Scalability] Banana Pi BPI-M4 Zero single board computer onboard 4GB LPDDR4 RAM memory, 32GB eMMC is added. It also supports MicroSD card slot, SDIO3.0 and 100Mbps Ethernet. Making IoT and educational application development easier.
- [Supports 2.4G/5G Dual Band WiFi] Banana Pi BPI-M4 Zero single board computer supports dual band 2.4G/5G WiFi 5 and Bluetooth 4.2, and the USB interface has also been upgraded to type-C HOST, also onboard USB2.0 Type-C OTG port.
- [Excellent Compatibility] Banana Pi BPI-M4 Zero single board computer has same form factor and 40-pin connector compatible with Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories. Size: 65mm ×30mm x 8mm.
- [Supports 4K Video Encoders] Banana Pi BPI-M4 Zero single board computer support mini HDMI 2.0A (up to 4K@60Hz with HDR10, CEC, DDC, SCDC ), support 4K Video encodings and HDMI digital Audio output.
- [Multi-function Interface] Banana Pi BPI-M4 Zero single board computer support 40-pin header and 24-pin FPC, support 28 pins GPIO, 9 pins GPIO, UART,TWI/I²C, PWM, PCM/I²S, 0.5mm pitch FPC connector and 100Mbps Ethernet.
- Wiki: Getting Start: "wiki.banana-pi.org/Getting_Started_with_BPI-M4_Zero"; support Linux Ubuntu OS. All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
-Specification-
CPU: Allwinner H618, Quad-core ARM Cortex-A53 processor, 64-bit, up to 1.5GHz
GPU: ARM Mali G31 GPU
Memory: 4GB LPDDR4
Storage: 32 eMMC flash
SD card: MicroSD card slot, SDIO3.0
Wireless: 2.4G/5G WiFi5 and Bluetooth 4.2
HDMI: 1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
USB: 1x USB2.0 Type-C HOST, 1x USB2.0 Type-C OTG
40-pin header: 28 pins GPIO and Power ( 5V, 3.3V and GND), UART, SPI, TWI/I²C, PWM, PCM/I²S
24-pin FPC: 0.5mm pitch FPC connector, 1x USB2.0, 1x IR, 1x 100Mbps Ethernet
9 pins GPIO, UART,TWI/I²C, PWM, PCM/I²S
Buttons: Reset, FEL
LED: Power Status and Activity status
Power: 5V@3A via USB Type-C
Size: 65mm × 30mm x 8mm
Weight: 20g
OS Support：Ubuntu, Debian
