- Features || 16 inputs || 12 mic channels || 2 stereo channels || 2 AUX sends || 16 DSP effects || Foot switch socket for DSP || PFL’s on all channels || Bluetooth || USB/SD media player ||
- Specifications || Inputs: 16 || Mic Inputs: 12 || Stereo Inputs: 2 || Mic Gain Range: 6dB to 50dB || Line Gain Range: 10dB to 34dB || EIN: -100dB || Frequency Responce: 10Hz 20kHz ( 1/-3dB) || THD Mic Channel: <0.1% || Signal to Noise Ratio: 80dB || Output Levels: Max 26dB (Bal), 20dB (unBal) ||
- Specifications || EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz || USB/SD: MP3 Audio playback || Record: To USB drive or SD card (128kbps mono) || DSP Effects: 16 DSP effects || Power Requirements: 100V 240V ~ || Dimension W*D*H: 385 x 527 x 85 (mm) || GTIN:5060255344392 || ITEM #: SM-CLUB-XS16P || MFG #: CLUB XS16

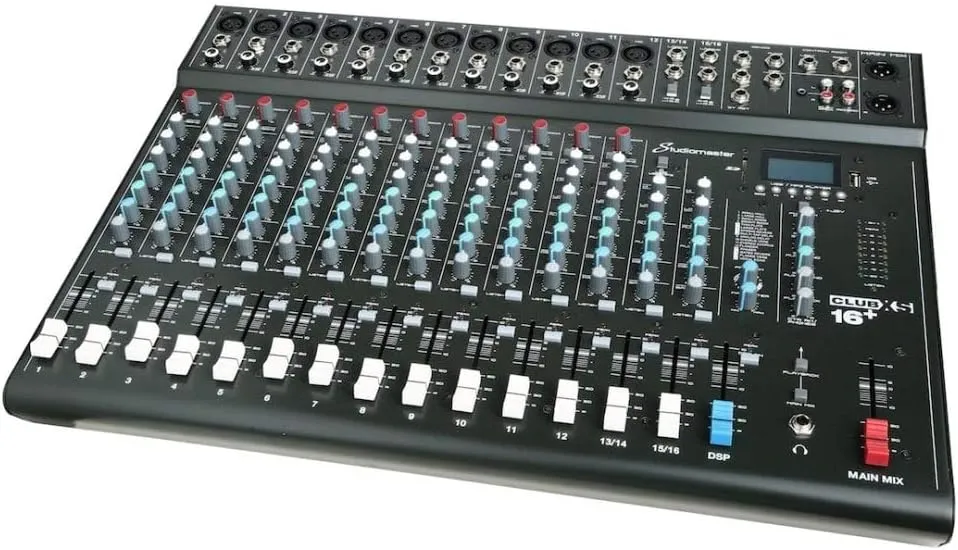

- The Studiomaster Club XS Compact, portable mixing consoles featuring 5 to 16 inputs, Bluetooth connectivity, on-board DSP effects and USB/SD card playback and recording functions. || 3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, and 2 band EQ with 2 auxiliaries for both stereo channels. ||
- There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback. || Ultra compact, light weight, high quality and extremely versatile, the Club XS is the perfect mixer for any live performance and home recording situation .
STUDIOMASTER 12CH 12 INPUT MIXER
