- [Made for Makers] NanoPi NEO Plus2 Single Board Computer has high-speed storage, high-speed network; made for makers, born for the Internet of Things.
- [Rich On-board Resources] AP6212 WiFi & Bluetooth module, Gbps Ethernet and two USB hosts. It supports system-boot from a MicroSD card.
- [GPIO Programming Libraries] Complete GPIO programming library connected to GIT, download the right assistant.
- [High Performance Chip] CPU: Allwinner H5; Frequency: 4* Cortex-A53 1.5GHz; 64-bit Ubuntu Core Xenial newly stable mainline kernel.
- [High-speed, lightweight] Gigabit Ethernet, high-speed USB Host, 40 x 52mm; high-speed and large throughput data transmission and high performance computing.
- [OS Support] FriendlyCore(based on UbuntuCore-16.04); Third party: Armbian, DietPi, Lakka, Kali, OpenWrt etc.
- [WIKI] friendlyelec.com/wiki/index.php/NanoPi_NEO_Plus2; Any after-sales problems, please contact us by our tech-support click "WayPonDEV" store or leave the message in our forum by "forum.youyeetoo.com/" and ask the question.
-Overview-
The NanoPi NEO Plus2 is another Allwinner based Single Board Computer developed by FriendlyElec. It uses Allwinner's 64-bit quad-core A53 SoC with hexa-core Mali450 GPU and features 512MB of DDR3 RAM and 8GB eMMC.
-Specification-
CPU: Allwinner H5 (Quad-core 64-bit high-performance Cortex A53)
DDR3 RAM:1GB
Storage: 8GB eMMC
Network: Gbps Ethernet
WiFi: 802.11b/g/n
Bluetooth: 4.0 dual mode
USB Host: 2 x Independent USB Host
MicroSD Slot: 1 x Slot. It supports system booting or is used to hold a storage card
Audio Input/Output: 4-Pin, 2.54mm pitch pin-header
MicroUSB: power input
Debug Serial: 4Pin, 2.54mm pitch pin-header
GPIO1:24Pin, 2.54mm pitch double-row pin-header containing UART, SPI, I2C and IO
GPIO2:12Pin, 2.54mm pitch pin-header containing USB, IR receiver,I2S and IO
Power Supply: DC 5V/2A
PCB Dimension: 40 x 52mm
PCB Layer: 6-Layer
-OS Support-
FriendlyCore(based on UbuntuCore-16.04)
Third party: Armbian, DietPi, Lakka, Kali, OpenWrt etc
Kernel version: Linux-4.14-LTS; U-boot-2017.11
-Package Content-

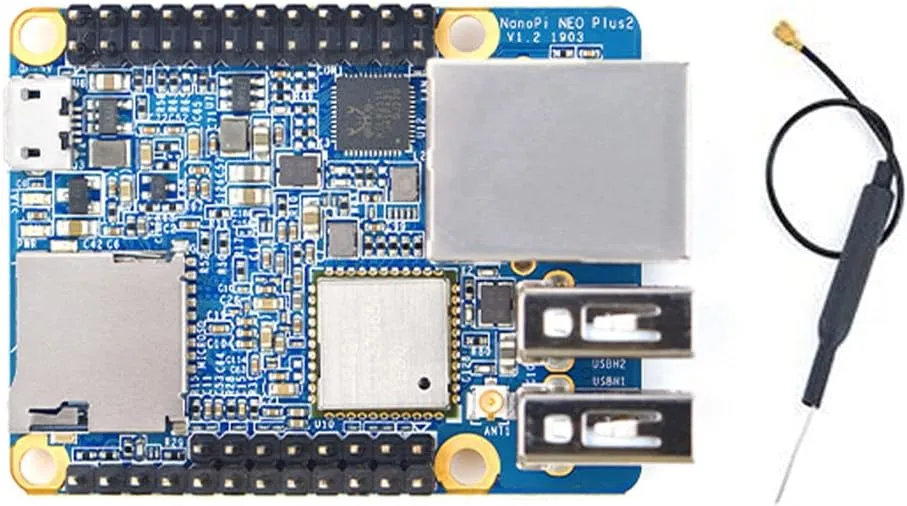

1x NanoPi NEO Plus2 512MB 8GB eMMC ARM Board
1x small antenna
-Technical Support-
Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122
Please leave the message in our forum by forum.youyeetoo.com/
